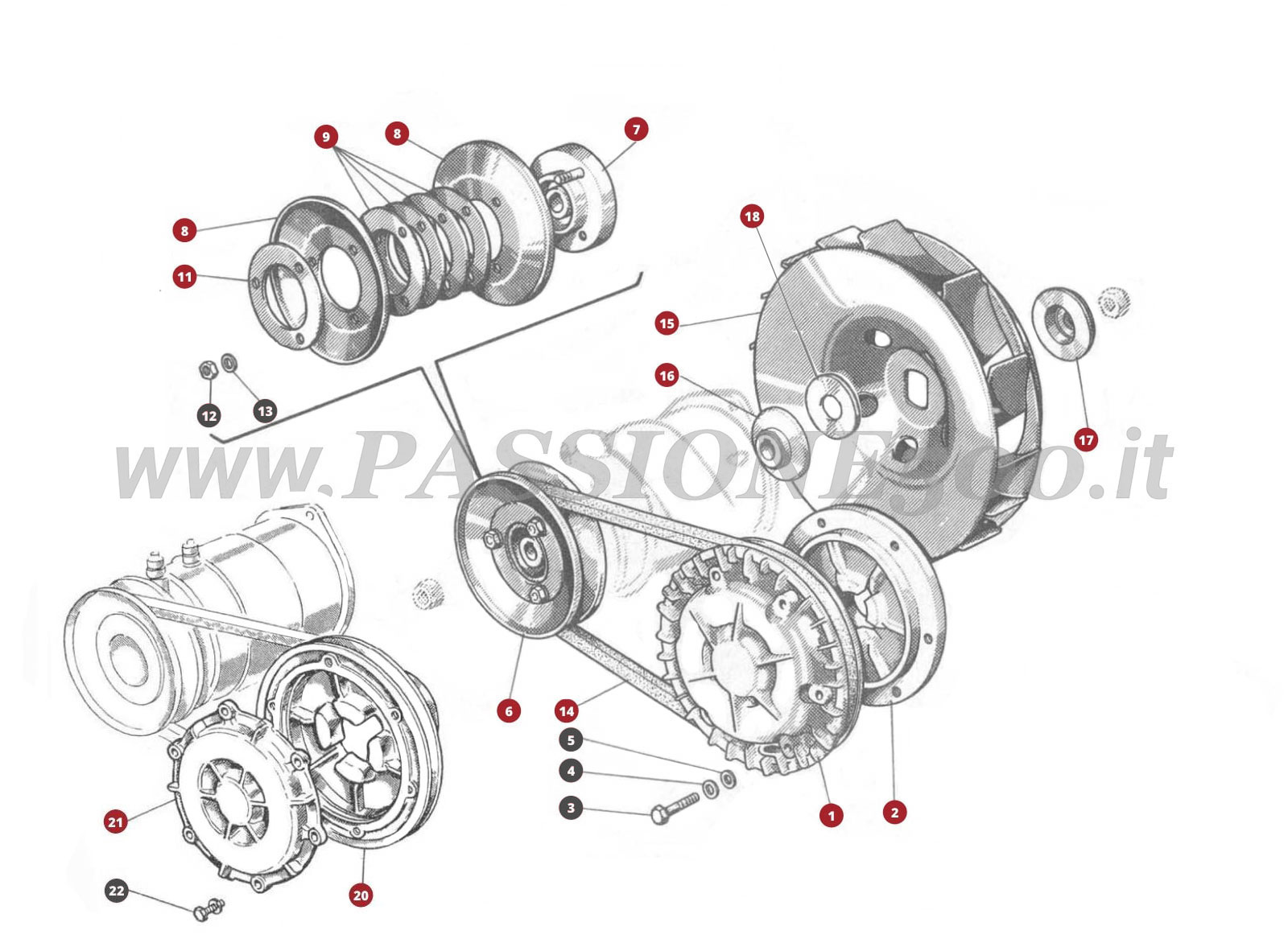

EXPLODED VIEW 14M – Cooling fan and dynamo control FIAT 500D

Select an exploded view number to view the product

EXPLODED VIEW 14M – Cooling fan and dynamo control FIAT 500D

1

2

3

4

5

6

7

8

8

9

11

12

13

14

15

16

17

18

20

EXPLODED VIEW 14M – Cooling fan and dynamo control FIAT 500D

EXPLODED VIEW 14M – Cooling fan and dynamo control FIAT 500D

1

2

3

4

5

6

Dynamo or Alternator Pulley and Spacing Shims Kit Fiat 500 N – D – F – L – R

7

Dynamo Pulley Hub Fiat 500 N – D – F – L – R

Hubs and Spacer Kit for Dynamo and Engine Fan Fiat 500 N – D – F – L – R

8

Dynamo or Alternator Pulley and Spacing Shims Kit Fiat 500 N – D – F – L – R

8

Dynamo or Alternator Pulley and Spacing Shims Kit Fiat 500 N – D – F – L – R

9

Dynamo or Alternator Internal Spacing Shim – Tickness 0,50 mm – Fiat 500 N – D – F – L – R

Dynamo or Alternator Internal Spacing Shim – Tickness 1,00 mm – Fiat 500 N – D – F – L – R

Dynamo or Alternator External Spacing Shim – Tickness 1,00 mm – Fiat 500 N – D – F – L – R

Dynamo or Alternator Internal Spacing Shim – Tickness 1,50 mm – Fiat 500 N – D – F – L – R

11

Dynamo or Alternator Internal Spacing Shim – Tickness 0,50 mm – Fiat 500 N – D – F – L – R

Dynamo or Alternator Internal Spacing Shim – Tickness 1,00 mm – Fiat 500 N – D – F – L – R

Dynamo or Alternator External Spacing Shim – Tickness 1,00 mm – Fiat 500 N – D – F – L – R

Dynamo or Alternator Internal Spacing Shim – Tickness 1,50 mm – Fiat 500 N – D – F – L – R

12

13

14

Dynamo Drive Fan Belt Fiat 500 N – D – F – L – R

15

Engine Cooling Fan Fiat 500 N – D – F – L – R

Reinforced and Balanced Engine Cooling Fan Fiat 500 N – D – F – L – R

16

Engine Cooling Fan Hub for Dynamo Fiat 500 N – D – F – L – R

Hubs and Spacer Kit for Dynamo and Engine Fan Fiat 500 N – D – F – L – R

17

Engine Cooling Fan Conical Spacer Fiat 500 N – D – F – L – R

Hubs and Spacer Kit for Dynamo and Engine Fan Fiat 500 N – D – F – L – R

18

Gasket between Engine Cooling Fan and Hub for Dynamo / Alternator Fiat 500 N – D – F – L – R

20

Oil Pump Pulley Fiat 500 D (from engine n.° 306206) – F – L – R

Oil Pump Pulley / for Engine with Electric Ignition / Fiat 500 D (from engine n.° 306206) – F – L – R

21

22
