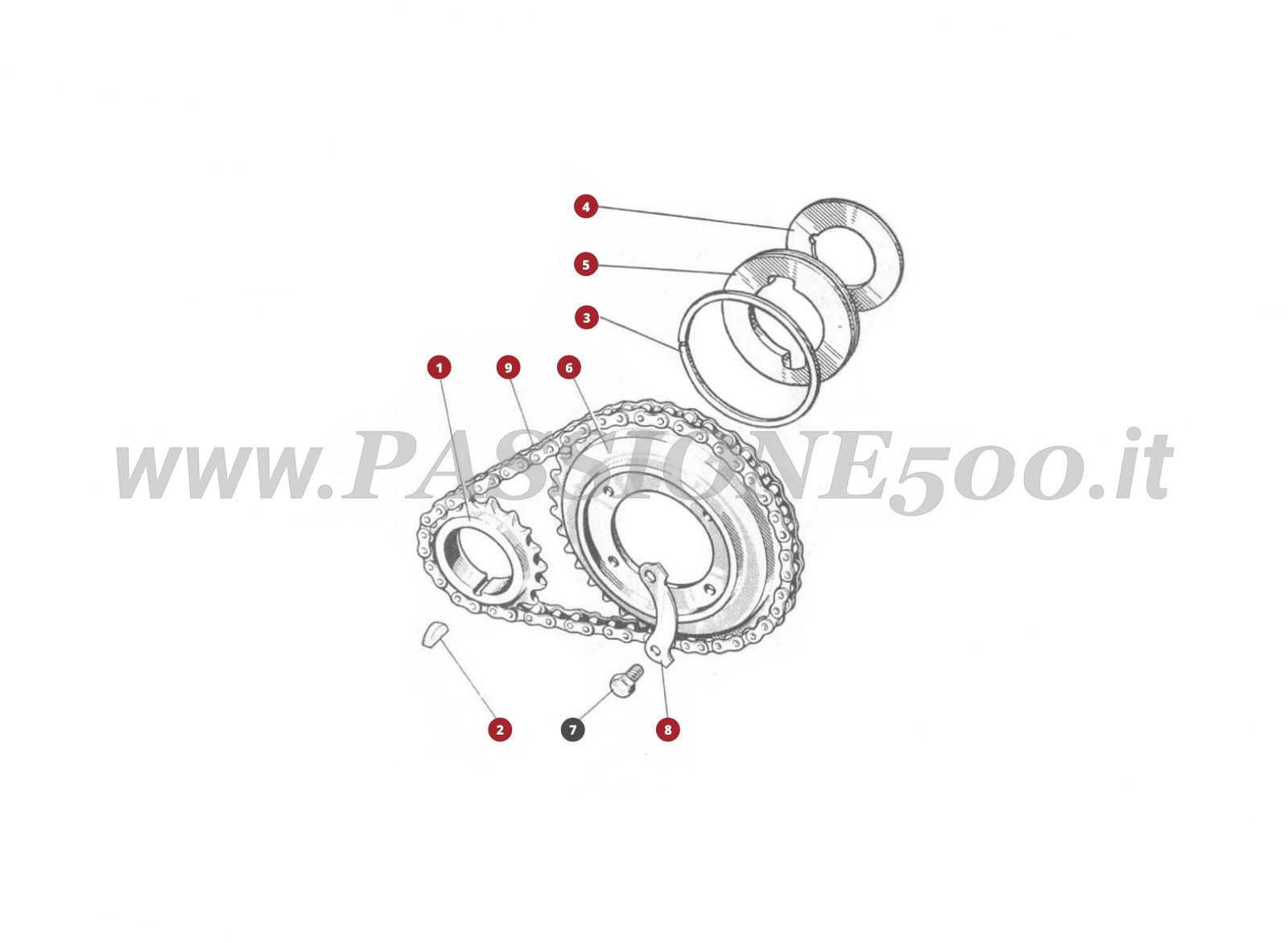

EXPLODED VIEW 5M – Timing chain FIAT 500D

Select an exploded view number to view the product

ESPLOSO 5M – Comando distribuzione FIAT 500D

2

1

3

4

5

6

7

8

9

EXPLODED VIEW 5M – Timing chain FIAT 500D

ESPLOSO 5M – Comando distribuzione FIAT 500D

2

Crankshaft Woodruff Key – Timing Chain Side – Fiat 500

1

Timing Chain Kit with Toothed Chain Fiat 500 N (from engine n.° 146091) – D – F – L – R

Timing Chain Kit with Roller Chain Fiat 500 N (from engine n.° 146091) – D – F – L – R

3

Timing Spacer Washer Ring Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

4

Timing Spacer Washer Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

5

Timing Spacer with Ring Housing Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

6

Timing Chain Kit with Toothed Chain Fiat 500 N (from engine n.° 146091) – D – F – L – R

Timing Chain Kit with Roller Chain Fiat 500 N (from engine n.° 146091) – D – F – L – R

7

8

Timing Chain Locking Plate on Driven Gear Fiat 500

9

Timing Chain Kit with Toothed Chain Fiat 500 N (from engine n.° 146091) – D – F – L – R

Timing Chain Kit with Roller Chain Fiat 500 N (from engine n.° 146091) – D – F – L – R
