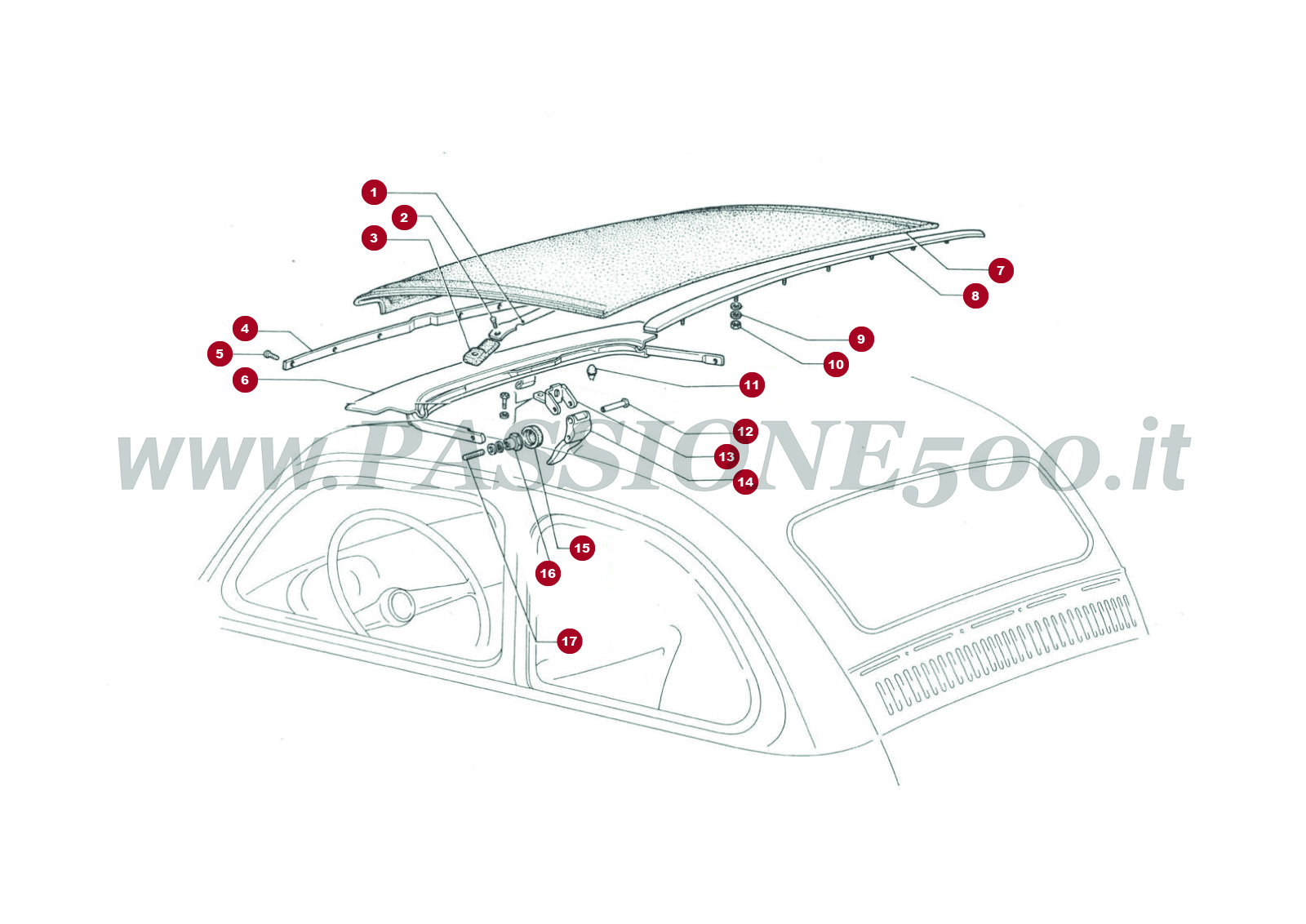

EXPLODED VIEW 10C – Sunroof and parts FIAT 500L

Select an exploded view number to view the product

EXPLODED VIEW 10C – Sunroof and parts FIAT 500L

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

EXPLODED VIEW 10C – Sunroof and parts FIAT 500L

EXPLODED VIEW 10C – Sunroof and parts FIAT 500L

1

Black Centre Sunroof Cover Bar Fiat 500 F (from May 1970) – L – R – Giardiniera

2

Black Rivet for Sunroof Fixing Fiat 500 F – L – R – Giardiniera base F

3

Rubber Bush for Centre Sunroof Bar Fiat 500

4

Black Sunroof Cover Front Fixing Strip Fiat 500 F (from May 1970) – L – R – Giardiniera base F

5

Fixing Kit for Front Sunroof Strip Fiat 500

6

Black Internal Sunroof Frame Fiat 500 F (from May 1970) – L – R

Black Sunroof Complete with Black Internal Frame Fiat 500 F (from May 1970) – L – R

7

Black Sunroof Cover 500 F – L – R

Black Sunroof Complete with Black Internal Frame Fiat 500 F (from May 1970) – L – R

Red Sunroof Cover Fiat 500 F – L – R

Red Sunroof Complete with Internal Frame Fiat 500 F – L – R

Brown Sunroof Cover Fiat 500 F – L – R

Brown Sunroof Complete with Internal Frame Fiat 500 F – L – R

Blue Sunroof Cover Fiat 500 F – L – R

Blue Sunroof Complete with Internal Frame Fiat 500 F – L – R

Grey Sunroof Cover Fiat 500 F – L – R

Grey Sunroof Complete with Internal Frame Fiat 500 F – L – R

Ocher Sunroof Cover Fiat 500 F – L – R

Red Bordeaux Sunroof Cover Fiat 500 F – L – R

Black Sunroof Cover with Transparent Window Fiat 500 F – L – R

Red Sunroof Cover with Transparent Window Fiat 500 F – L – R

Black and White Chequered Sunroof Cover Fiat 500 F – L – R

Black and White Chequered Sunroof Complete with Internal Frame Fiat 500 F – L – R

Black and Red Chequered Sunroof Cover Fiat 500 F – L – R

Black and Yellow Chequered Sunroof Cover Fiat 500 F – L – R

Black and Blue Chequered Sunroof Cover Fiat 500 F – L – R

8

Rear Bar for Sunroof Cover Fixing with Threaded Pins Fiat 500 N – D – F – L – R

Fixing Kit for Sunroof Rear Bar Fiat 500

9

Fixing Kit for Sunroof Rear Bar Fiat 500

10

Fixing Kit for Sunroof Rear Bar Fiat 500

11

Sunroof Handle Rubber Plug Fiat 500 F – L – R – Giardiniera base F

12

Sunroof Handle Fixing Pin Fiat 500 F – L – R – Giardiniera base F

13

Sunroof Handle Bracket Fiat 500 Fiat 500 F – L – R – Giardiniera base F

14

Metal Sunroof Handle with Pin Fiat 500 F – L – R – Giardiniera base F

Plastic Sunroof Handle Fiat 500 F – L – R – Giardiniera F base

15

Sunroof Frame Fixing Nut Cap Fiat 500

16

Chrome Nut and Stud for Sunroof Frame Fixing Fiat 500

17

Chrome Nut and Stud for Sunroof Frame Fixing Fiat 500
