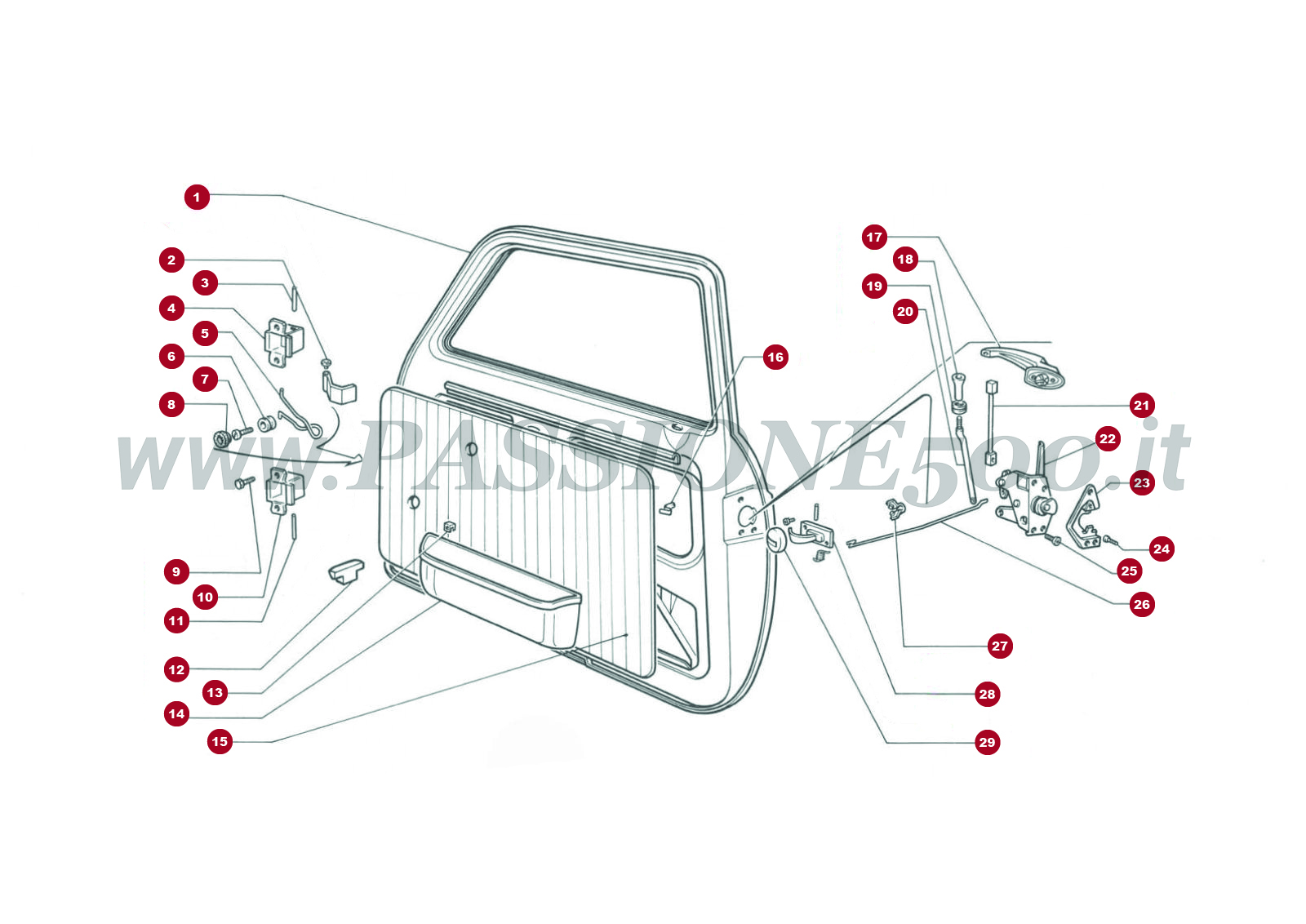

EXPLODED VIEW 7C/1 – Door and parts FIAT 500L

Select an exploded view number to view the product

EXPLODED VIEW 7C 1 – Door and parts FIAT 500L

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

22

21

23

24

25

26

27

28

29

EXPLODED VIEW 7C/1 – Door and parts FIAT 500L

EXPLODED VIEW 7C 1 – Door and parts FIAT 500L

1

Left Door Fiat 500 F (from n.° for spares 1032976) – L – R

Right Door Fiat 500 F (from n.° for spares 1032976) – L – R

2

Door Hinge Pin Kit Fiat 500 F – L – R

3

Door Hinge Pin Kit Fiat 500 F – L – R

4

Door Hinge Fiat 500 F (from n.° for spares 1032976) – L – R

5

Door Check Metal Strap Fiat 500 F – L – R

6

Door Check Metal Strap Roller Fiat 500 F – L – R

7

Door Check Strap Roller Screw and Washer Fiat 500 F – L – R

8

Plastic Cap for Door Check Strap Hole Fiat 500 F – L – R

9

Screw and Washer for Door Hinge Fixing Fiat 500 F (from n.° for spares 1032976) – L – R

10

Door Hinge Fiat 500 F (from n.° for spares 1032976) – L – R

11

Door Hinge Pin Kit Fiat 500 F – L – R

12

Plastic Door Hinge Cover Fiat 500 F – L

13

Door Pocket Fixing Clip Fiat 500

14

Door Pocket Fiat 500 L

Door Pocket Fiat 500 (Adjustable)

15

Pair of Inner Door Panels – Black Color – Fiat 500 L

Pair of Rear Inner Arch Panels – Black Color – Fiat 500 L

Pair of Inner Door Panels – Ocher Color – Fiat 500 L

Pair of Rear Inner Arch Panels – Ocher Color – Fiat 500 L

Pair of Inner Door Panels – Red Bordeaux Color – Fiat 500 L

Pair of Rear Inner Panels – Red Bordeaux Color – Fiat 500 L

Pair of Inner Door Panels – Black Color – Fiat 500 L

Pair of Rear Inner Arch Panels – Black Color – Fiat 500 L

Pair of Inner Door Panels – Ocher Color – Fiat 500 L

Pair of Rear Inner Arch Panels – Ocher Color – Fiat 500 L

Pair of Inner Door Panels – Red Color – Fiat 500 L

Pair of Rear Inner Arch Panels – Red Color – Fiat 500 L

Inner Door Panels Plastic Fixing Clip Fiat 500 F – L – R

16

Inner Door Panels Plastic Fixing Clip Fiat 500 F – L – R

17

Pair of Chrome Outer Door Handles with Keys Fiat 500 F – L – R

Pair of Chrome Outer Door Handles Premium Quality with Keys Fiat 500 F – L – R

Kit of Outer Door Handles and Engine Lid Handle Chrome Premium Quality with Unique Key Fiat 500 F – L – R

Pair of Seal for Outer Door Handle Fiat 500 F – L – R

18

Door Lock Knob Fiat 500 F – L – R

19

Door Lock Button Rubber Ring Fiat 500 F – L – R

20

Door Lock Knob Connecting Rod Fiat 500 F – L – R

Rubber Clip for Door Lock Knob Connecting Rod Fiat 500 F – L – R

22

Left Door Lock Mechanism Fiat 500 F – L – R

Right Door Lock Mechanism Fiat 500 F – L – R

Door Lock Mechanism Oiler Rubber Cap Fiat 500 F – L – R

21

Connecting Rod between Door Lock Mechanism and Outer Door Handle Fiat 500 F – L – R

23

Left Door Lock Catch Fiat 500 F – L – R

Right Door Lock Catch Fiat 500 F – L – R

Door Lock Catch Reinforcement Plate Fiat 500 F – L – R

24

Door Lock Catch Fixing Screw Fiat 500 F – L – R

25

Door Lock Mechanism Fixing Screw and Washer Fiat 500 F – L – R

26

Connecting Rod between Door Lock Mechanism and Inner Door Opening Handle Fiat 500 L – R

Retainer for Connecting Rod between Door Lock Mechanism and Inner Door Opening Handle Fiat 500 F – L – R

27

Door Lock Connecting Rod Clip Fiat 500 F – L – R

28
