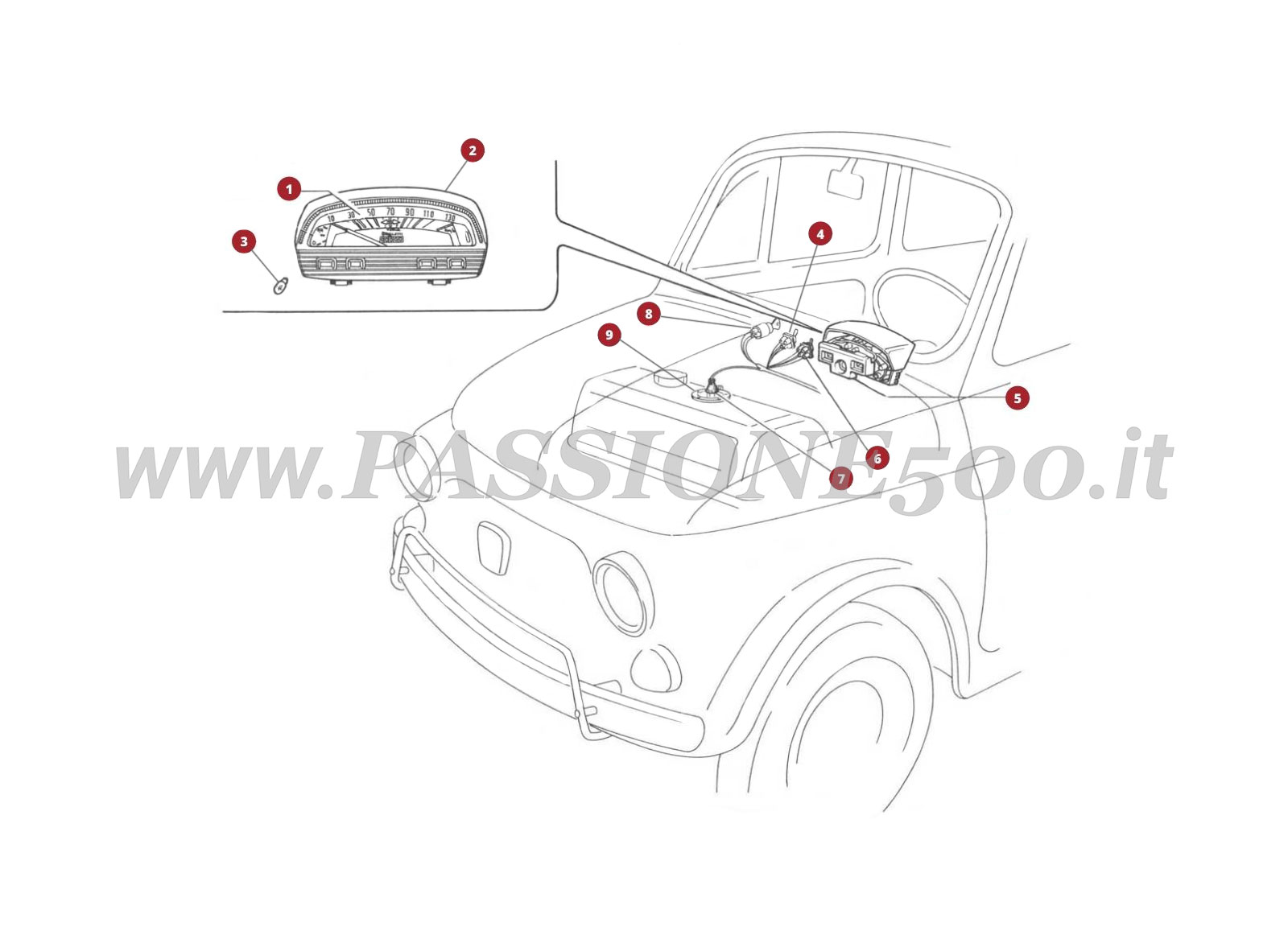

EXPLODED VIEW 34/3M – Operation indicators FIAT 500L

Select an exploded view number to view the product

EXPLODED VIEW 34/3M – Operation indicators FIAT 500L

1

2

3

4

5

6

7

8

9

EXPLODED VIEW 34/3M – Operation indicators FIAT 500L

EXPLODED VIEW 34/3M – Operation indicators FIAT 500L

1

Speedometer Glass with Scale 0-130 Km/h Fiat 500 L

Speedometer Glass with Scale 0-90 Mph Fiat 500 L

2

Reconditioned Speedometer – with return of the used spare part – Fiat 500 L

3

Bulb 4 W for Speedometer Light Fiat 500

4

Dash Switch for External Lights with Black Lever – flat terminal – Fiat 500 F (from n.° for spares 1732667) – L – R – Giardiniera (from 1969)

5

Speedometer Cluster Rubber Mounting Fiat 500 L

6

Dash Switch for Speedometer Light with Black Lever – flat terminal – Fiat 500 F (from n.° for spares 1732667) – L – Giardiniera (until 1973)

7

Fuel Tank Sender Unit Cable Protection Rubber Cover – Ø int. 15 mm – Fiat 500

Fuel Tank Sender Unit Cable Protection Rubber Cover – Ø int. 13 mm – Fiat 500 L

8

Dashboard Ignition Switch with Chrome Bezel Fiat 500 N – D – F (until n.° for spares 1732666) – Giardiniera (until 1968)

Dashboard Ignition Switch with Black Bezel Fiat 500 F (from n.° for spares 1732667) – L – R – Giardiniera (from 1969)

Dashboard Ignition Switch with Chrome Bezel Fiat 500 N – D – F (until n.° for spares 1732666) – Giardiniera (until 1968)

Dashboard Ignition Switch with Fiat Keys and Black Bezel Fiat 500 F (from n.° for spares 1732667) – L – R – Giardiniera (from 1969)

Dashboard Ignition Switch Chrome Bezel Fiat 500 N – D – F (until n.° for spares 1732666) – Giardiniera (until 1968)

Dashboard Ignition Switch Black Bezel Fiat 500 F (from n.° for spares 1732667) – L – R – Giardiniera (from 1969)

Dashboard Ignition Switch for Key Engine Start Modify Fiat 500 N – D – F – L – R

9

Fuel Tank Sender Unit Fiat 500 L

Fuel Tank Sender Unit Rubber Gasket Seal Fiat 500
