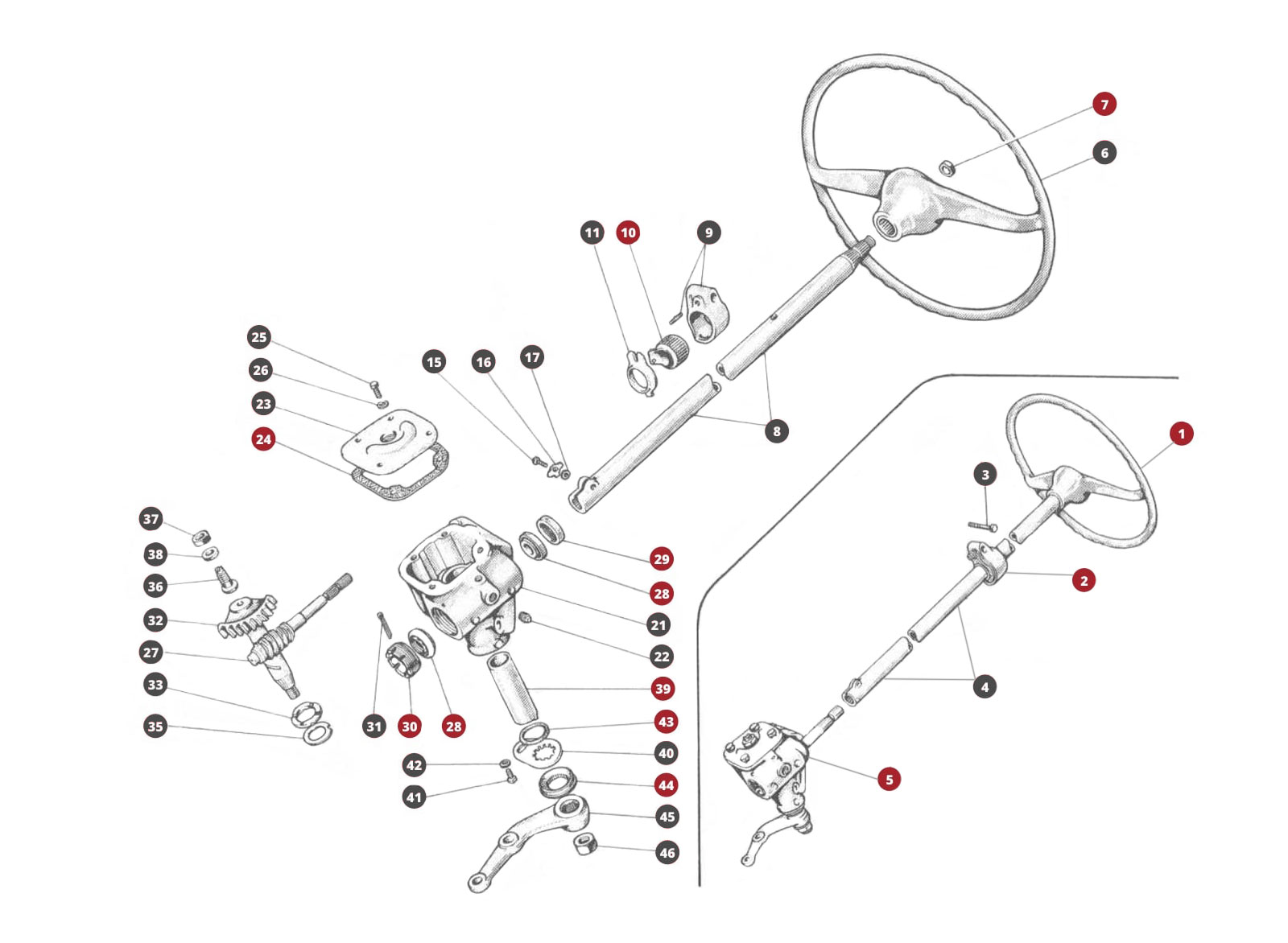

EXPLODED VIEW 27M – Steering gear system FIAT 500N

Select an exploded view number to view the product

EXPLODED VIEW 27M – Steering gear system FIAT 500N

EXPLODED VIEW 27M – Steering gear system FIAT 500N

2

Steering Column Support Bracket Fiat 500 N (from n.° for spares 017688) – D – F – L – R – Giardiniera

20,00 €
COD: SOP28B

Ignition Switch on Column with Steering Lock Fiat 500 N (from n.° for spares 017688) – D – F – L – R – Giardiniera

259,00 €
COD: SOP28

Ignition Switch with Steering Lock Rubber Boot Fiat 500 N (from n.° for spares 017688) – D – F – L – R – Giardiniera

9,00 €
COD: SOP28C

1

Ivory Steering Wheel Fiat 500 N (from n.° for spares 017688) – D – F – Giardiniera (until 1973)

329,00 €
COD: SOP25C

Complete Horn Push Fiat 500 N (from n.° for spares 017688) – D – F – R – Giardiniera

35,00 €
COD: ELE113B

3

4

5

Reconditioned Steering Box LHD – with return of the used spare part – Fiat 500 N (until n.° for spares 080167)

149,00 €
COD: SOP19

Reconditioned Steering Box LHD – with return of the used spare part – Fiat 500 N (from n.° for spares 080168) – D (until n.° for spares 575438) – Giardiniera base D (until n.° for spares 108787)

149,00 €
COD: SOP19B

6

7

Steering Wheel Fixing Nut Fiat 500

3,00 €
COD: SOP24

8

9

10

Steering Column Bush Fiat 500 N (until n.° for spares 017687)

49,00 €
COD: SOP27E

Steering Column Inner Brass Bush Fiat 500 N (until n.° for spares 017687)

36,00 €
COD: SOP27F

11

24

Steering Box Gasket Kit Fiat 500 N – D (until n.° for spares 575438) – Giardiniera base D (until n.° for spares 108787)

29,00 €
COD: SOP21E

28

Steering Box Bearing Fiat 500

7,00 €
COD: SOP22

28

Steering Box Bearing Fiat 500

7,00 €
COD: SOP22

29

Steering Box Gasket Kit Fiat 500 N – D (until n.° for spares 575438) – Giardiniera base D (until n.° for spares 108787)

29,00 €
COD: SOP21E

30

Steering Box Threaded Plug Fiat 500

10,00 €
COD: SOP21D

39

Steering Box Bronze Adjustment Eccentric Bush Fiat 500

55,00 €
COD: SOP21B

43

Steering Box Gasket Kit Fiat 500 N – D (until n.° for spares 575438) – Giardiniera base D (until n.° for spares 108787)

29,00 €
COD: SOP21E

44

Steering Box Oil Seal Washer Fiat 500 N – D (until n.° for spares 575438) – Giardiniera base D (until n.° for spares 108787)

19,00 €
COD: SOP22B

Steering Box Gasket Kit Fiat 500 N – D (until n.° for spares 575438) – Giardiniera base D (until n.° for spares 108787)

29,00 €
COD: SOP21E

45

46
