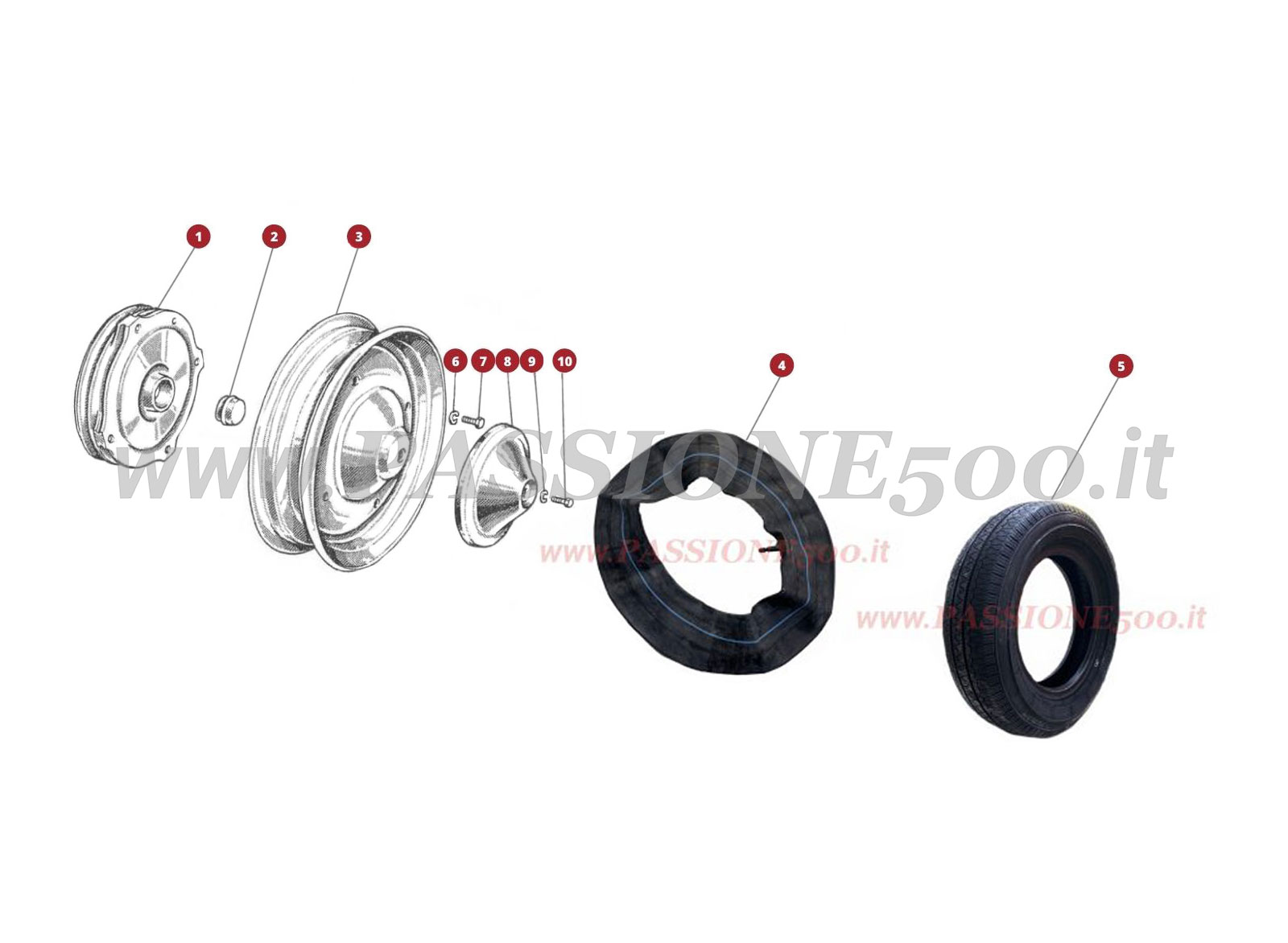

EXPLODED VIEW 32M – Tyres, Hubcaps and Wheels FIAT 500N

Select an exploded view number to view the product

EXPLODED VIEW 32M – Tyres, Hubcaps and Wheels FIAT 500N

1

2

3

4

5

6

7

8

9

10

EXPLODED VIEW 32M – Tyres, Hubcaps and Wheels FIAT 500N

EXPLODED VIEW 32M – Tyres, Hubcaps and Wheels FIAT 500N

1

Front Brake Drum Fiat 500 N – D – F – L – R

2

Front Grease Cap Fiat 500 N – D – F – L – R

3

Steel Road Wheel Certified 3,5” x 12 Fiat 500 N (from n.° for spares 17.678) – D

Steel Road Wheel Certified Type “CMR” 4,5” x 12 Fiat 500 N – D – F – L – R

4

Tyre Inner Tube 125/135 – R12 for Fiat 500

5

Tyre 125 – R12 – 62S for Fiat 500

Tyre Cinturato Pirelli 125 – R12 – 62S for Fiat 500

Tyre 135 – R12 – 80 for Fiat 500

Tyre 125 – R12 – 62S with White Wall for Fiat 500

Applicable White Wall for Tyre 125 – R12 for Fiat 500

6

Wheel Bolt Spring Washer Fiat 500 N – D – F – L – R (until n.° for spares 5.187.044)

7

Wheel Bolt Fiat 500 N – D

8

Aluminium Hub Cap Fiat 500 N (until n.° for spares 17.678) – D – F (until May 1966)

9

Hub Cap Bolt Aluminium Washer Fiat 500 N – D – F – L

10

Chrome Hub Cap Bolt Fiat 500 N – D – F – L
