EXPLODED VIEW 41M – Side indicator light and Front indicator lamp FIAT 500N

Select an exploded view number to view the product

EXPLODED VIEW 41M – Side indicator light and Front indicator lamp FIAT 500N

1

2

3

4

5

6

7

EXPLODED VIEW 41M – Side indicator light and Front indicator lamp FIAT 500N

EXPLODED VIEW 41M – Side indicator light and Front indicator lamp FIAT 500N

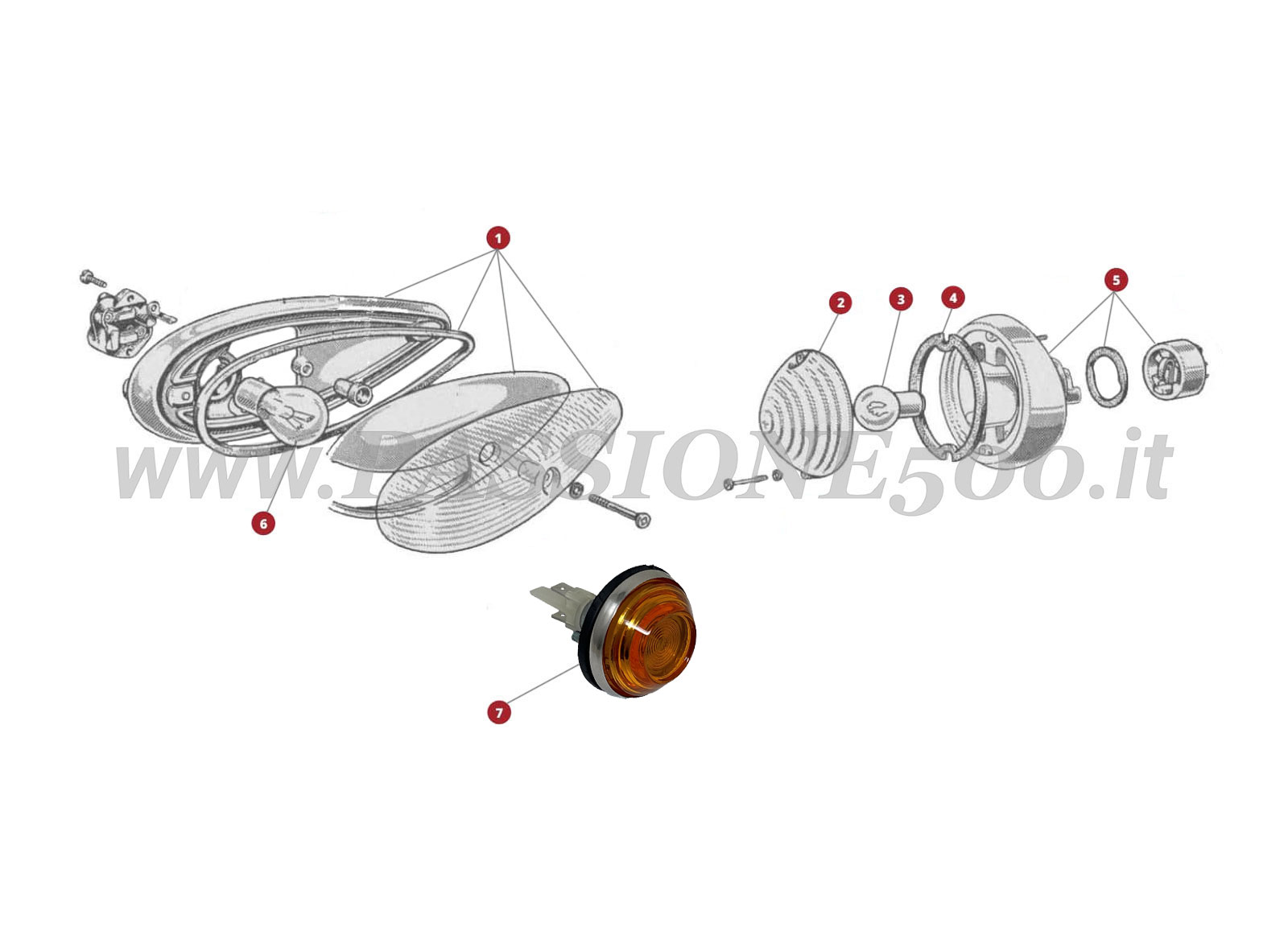

1

Side Indicator Lamp type Carello Fiat 500 N (until n.° for spares 099626)

Rubber Seal between Front Indicator Lamp and Front Fender Fiat 500 N (until n.° for spares 099626)

2

Front Indicator Lens White Fiat 500 N (from n.° for spares 099627) – D – Giardiniera base D

Front Indicator Lens Orange Fiat 500 N (from n.° for spares 099627) – D – Giardiniera base D

3

Bulb at Double Filament 21/5W Fiat 500

4

Front Indicator Lamp Intermediate Gasket Fiat 500 N (from n.° for spares 099627) – D – Giardiniera base D

5

Front Indicator Lamp White in Aluminium Fiat 500 N (from n.° for spares 099627 099627) – D – Giardiniera base D

Front Indicator Lamp Rear Boot Fiat 500 N (from n.° for spares 099627) – D – F – L – R – Giardiniera

6

Bulb at Single Filament 21 W for Rear Lamp Fiat 500

7

Orange Side Indicator Lamp Fiat 500 N (from n.° for spares 099627) – D – F – L – R – Giardiniera (until n.° for spares 240464)

Rubber Seal between Front Indicator Lamp and Front Fender Fiat 500 N (from n.° for spares 099627) – D – F – L – R – Giardiniera (from n.° for spares 099627)

Side Indicator Lamp Rear Boot Fiat 500 N (from n.° for spares 099627) – D – F – L – R – Giardiniera (until n.° for spares 240464)

Side Indicator Lamp Light Bulb Holder with Round Terminal Fiat 500 N – D – F (until n.° for spares 1732666) – Giardiniera (until 1968)

Bulb 5 W for Side Indicator Lamp Fiat 500 (check notes in description)

Orange Bulb 5 W for Side Indicator Lamp Fiat 500 (check notes in description)

Bulb type Original 4 W for Side Indicator Lamp Fiat 500 (check notes in description)
