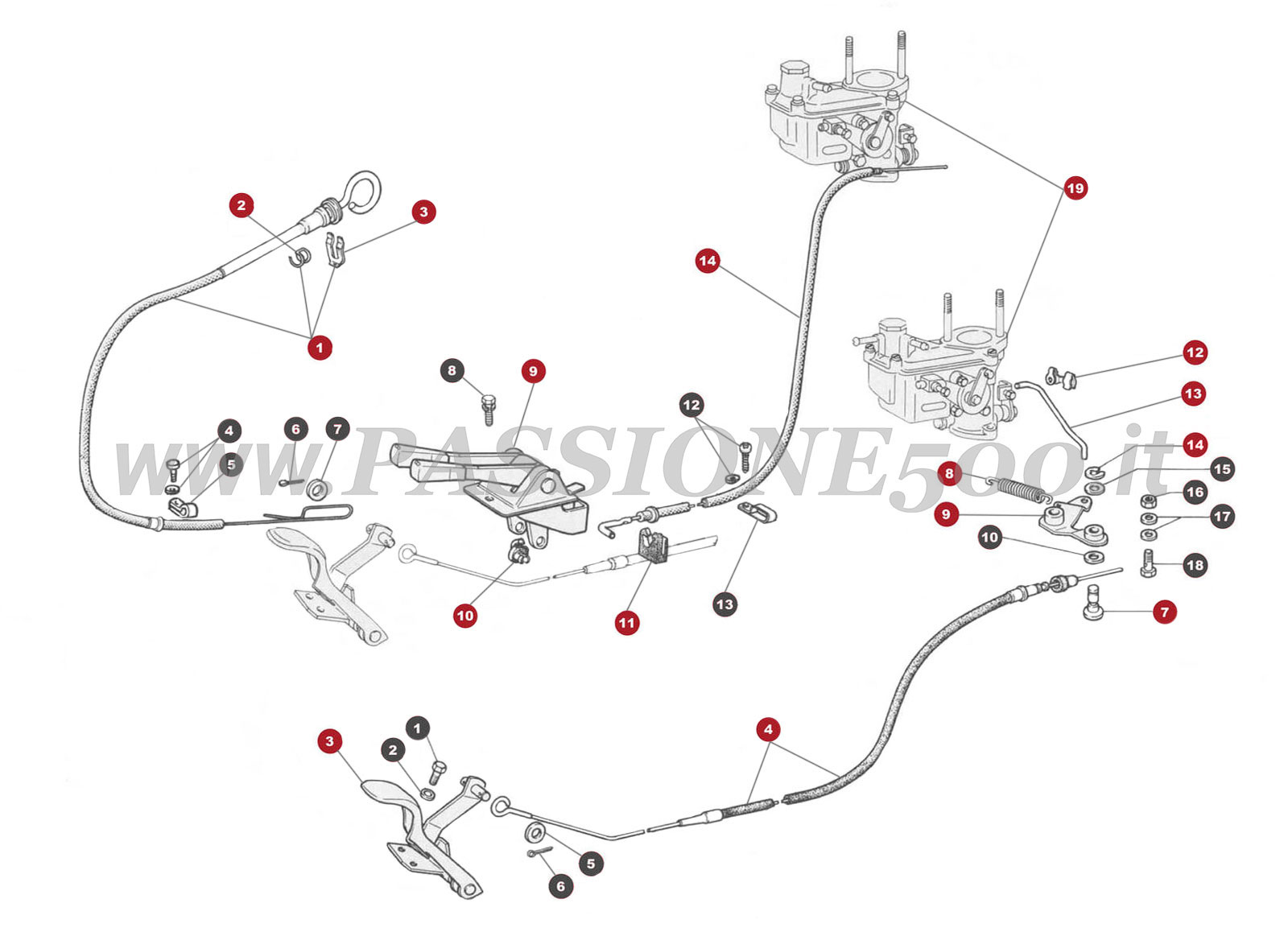

EXPLODED VIEW 10M – Throttle and carburettor control FIAT 500R

Select an exploded view number to view the product

EXPLODED VIEW 10M – Throttle and carburettor control FIAT 500R

1

2

3

9

10

11

14

19

3

4

7

8

9

12

13

14

EXPLODED VIEW 10M – Throttle and carburettor control FIAT 500R

EXPLODED VIEW 10M – Throttle and carburettor control FIAT 500R

1

Complete Hand Control Accelerator Cable Fiat 500

2

Hand Control Accelerator Cable Retain Clip Fiat 500 N – D – F – L – Giardiniera

3

Hand Control Accelerator Cable Fixing Clip Fiat 500 N – D – F – L – Giardiniera

9

Choke and Starter Pull Lever Assembly Fiat 500 F (from April 1967) – L – R – Giardiniera (from April 1967)

Choke or Starter Pull Lever Plastic Cap Fiat 500 D (from n.° for spares 297961) – F – L – R – Giardiniera (from n.° for spares 064888)

10

Choke Cable Fixing Clip Fiat 500 F/L (from n.° for spares 3080417) – R – Giardiniera (from n.° for spares 285413)

11

Sheath Choke Cable Fixing Clip Fiat 500 F/L (from n.° for spares 3080417) – R – Giardiniera (da n.° per ricambi 285413)

14

Complete Choke Cable Fiat 500 R

19

Carburettor Weber 28IMB Fiat 500 R (Adjustable)

3

Accelerator Pedal Fiat 500 (check notes in description)

4

Complete Accelerator Pedal Cable Fiat 500 F – L – R

7

Accelerator Control Plastic Lever Bush Fiat 500 F – L – R

Accelerator Control Metal Lever Bush Fiat 500 F – L – R

8

Accelerator Pedal Spring Fiat 500 R

9

Accelerator Throttle Control Lever Fiat 500 F – L – R

12

Accelerator Linkage Carburettor Clip Fiat 500 N – D – F – L – R

13

Accelerator Rod Carburettor Fiat 500 F – L – R

14

Accelerator Throttle Assembly Fixing Seeger Ring Fiat 500 F – L – R – Giardiniera base F
