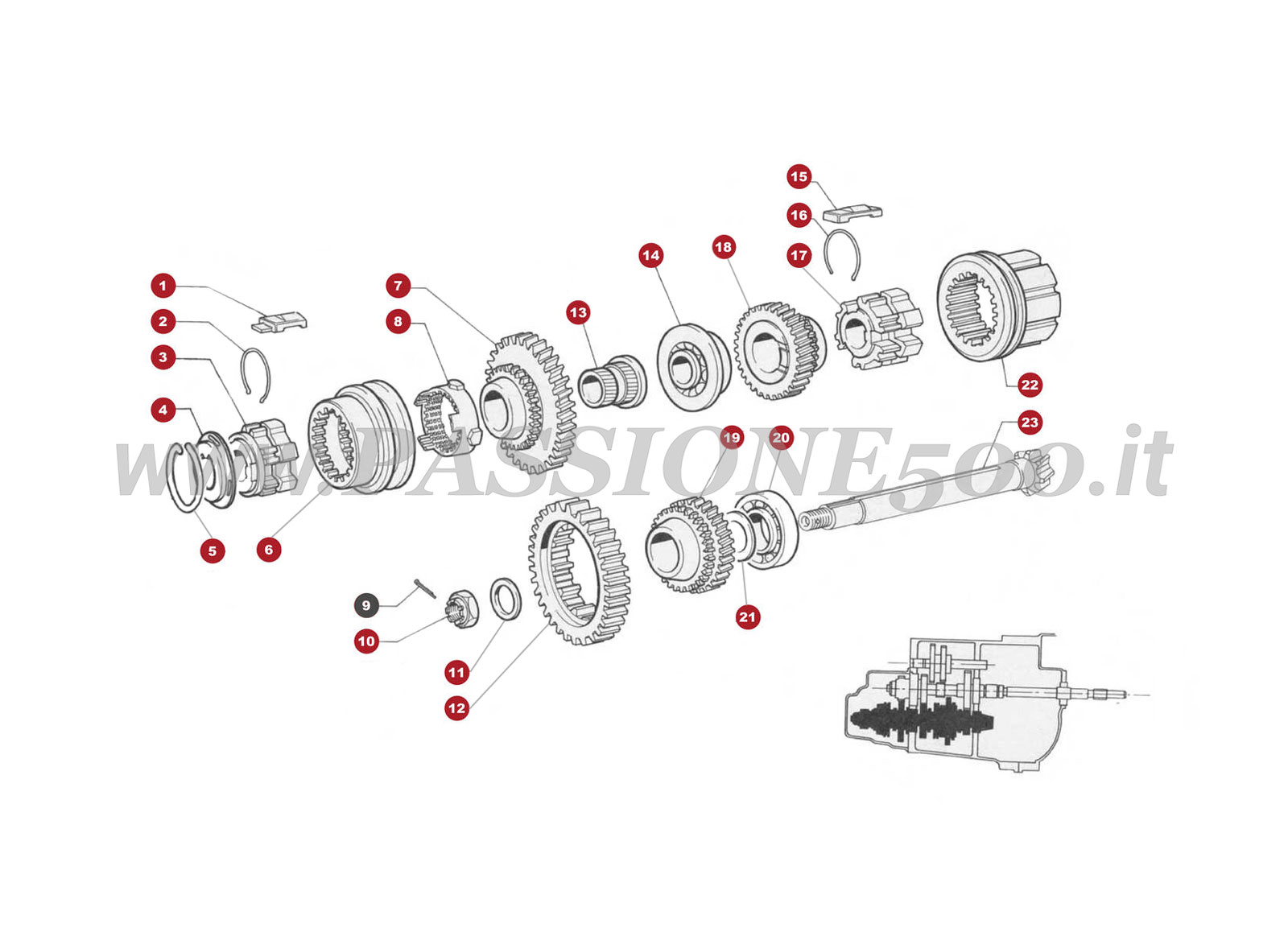

EXPLODED VIEW 18/1M – Synchronized transmission gears FIAT 500R

Select an exploded view number to view the product

EXPLODED VIEW 18/1M – Synchronized transmission gears FIAT 500R

EXPLODED VIEW 18/1M – Synchronized transmission gears FIAT 500R
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

1

2

3

4


    To request the availability of this spare part, fill out the form below

    5


      To request the availability of this spare part, fill out the form below

      6

      7

      8

      9

      10


        To request the availability of this spare part, fill out the form below

        11


          To request the availability of this spare part, fill out the form below

          12

          13

          14


            To request the availability of this spare part, fill out the form below

            15

            ]

            16

            17

            18

            19

            20

            21

            22

            23
