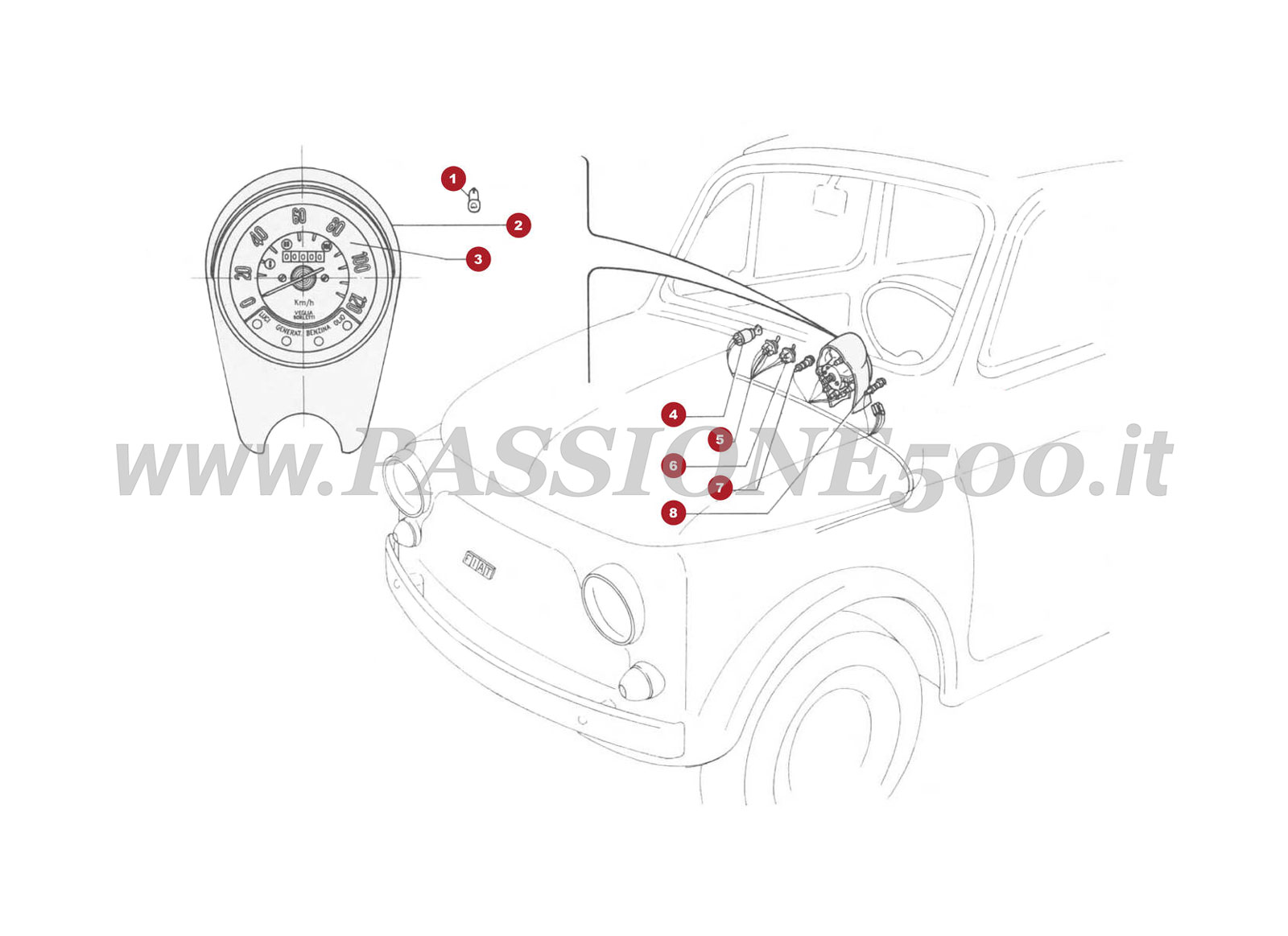

EXPLODED VIEW 34/3M – Operation indicators FIAT 500R

Select an exploded view number to view the product

EXPLODED VIEW 34/3M – Operation indicators FIAT 500R

1

2

3

4

5

6

7

8

EXPLODED VIEW 34/3M – Operation indicators FIAT 500R

EXPLODED VIEW 34/3M – Operation indicators FIAT 500R

1

Bulb 4 W for Dashboard Light Fiat 500

2

Reconditioned Speedometer – with return of the used spare part – Fiat 500 R and Autobianchi 500 Giardiniera from 1973

Dash Speedo Housing Fiat 500 R and Autobianchi 500 Giardiniera from 1973

3

Speedometer Glass with Scale 0-120 Km/h Fiat 500 F – R – Giardiniera base F

Speedometer Back Plate with Scale 0-120 Km/h Fiat 500 F – R – Giardiniera base F

Speedometer Black Back Plate Fiat 500 F – R – Giardiniera base F

Chrome Speedo Bezel Fiat 500 F – R – Giardiniera base F

Speedometer Glass with Scale 0-80 Mph Fiat 500 F – R – Giardiniera base F

4

Dashboard Ignition Switch with Chrome Bezel Fiat 500 N – D – F (until n.° for spares 1732666) – Giardiniera (until 1968)

Dashboard Ignition Switch with Black Bezel Fiat 500 F (from n.° for spares 1732667) – L – R – Giardiniera (from 1969)

Dashboard Ignition Switch with Chrome Bezel Fiat 500 N – D – F (until n.° for spares 1732666) – Giardiniera (until 1968)

Dashboard Ignition Switch with Fiat Keys and Black Bezel Fiat 500 F (from n.° for spares 1732667) – L – R – Giardiniera (from 1969)

Dashboard Ignition Switch Chrome Bezel Fiat 500 N – D – F (until n.° for spares 1732666) – Giardiniera (until 1968)

Dashboard Ignition Switch Black Bezel Fiat 500 F (from n.° for spares 1732667) – L – R – Giardiniera (from 1969)

Dashboard Ignition Switch for Key Engine Start Modify Fiat 500 N – D – F – L – R

5

Dash Switch for Wiper with Black Lever – flat terminal – Fiat 500 F (from n.° for spares 1732667) – L – R – Giardiniera (from 1969)

6

Dash Switch for External Lights with Black Lever – flat terminal – Fiat 500 F (from n.° for spares 1732667) – L – R – Giardiniera (from 1969)

7

Blue Dash Light for High Beam Headlights Segnalation with Flat Terminal Fiat 500 F (from n.° for spares 1732667) – R – Giardiniera (from 1969)

Dash Light Bulb Holder with Flat Terminal Fiat 500 F (from n.° for spares 1732667) – L – R – Giardiniera (from 1969)

Bulb 4 W for Dashboard Light Fiat 500

8

Green Dash Light for Side Indicator Segnalation with Flat Terminal Fiat 500 F (from n.° for spares 1732667) – R – Giardiniera (from 1969)

Dash Light Bulb Holder with Flat Terminal Fiat 500 F (from n.° for spares 1732667) – L – R – Giardiniera (from 1969)

Bulb 4 W for Dashboard Light Fiat 500
