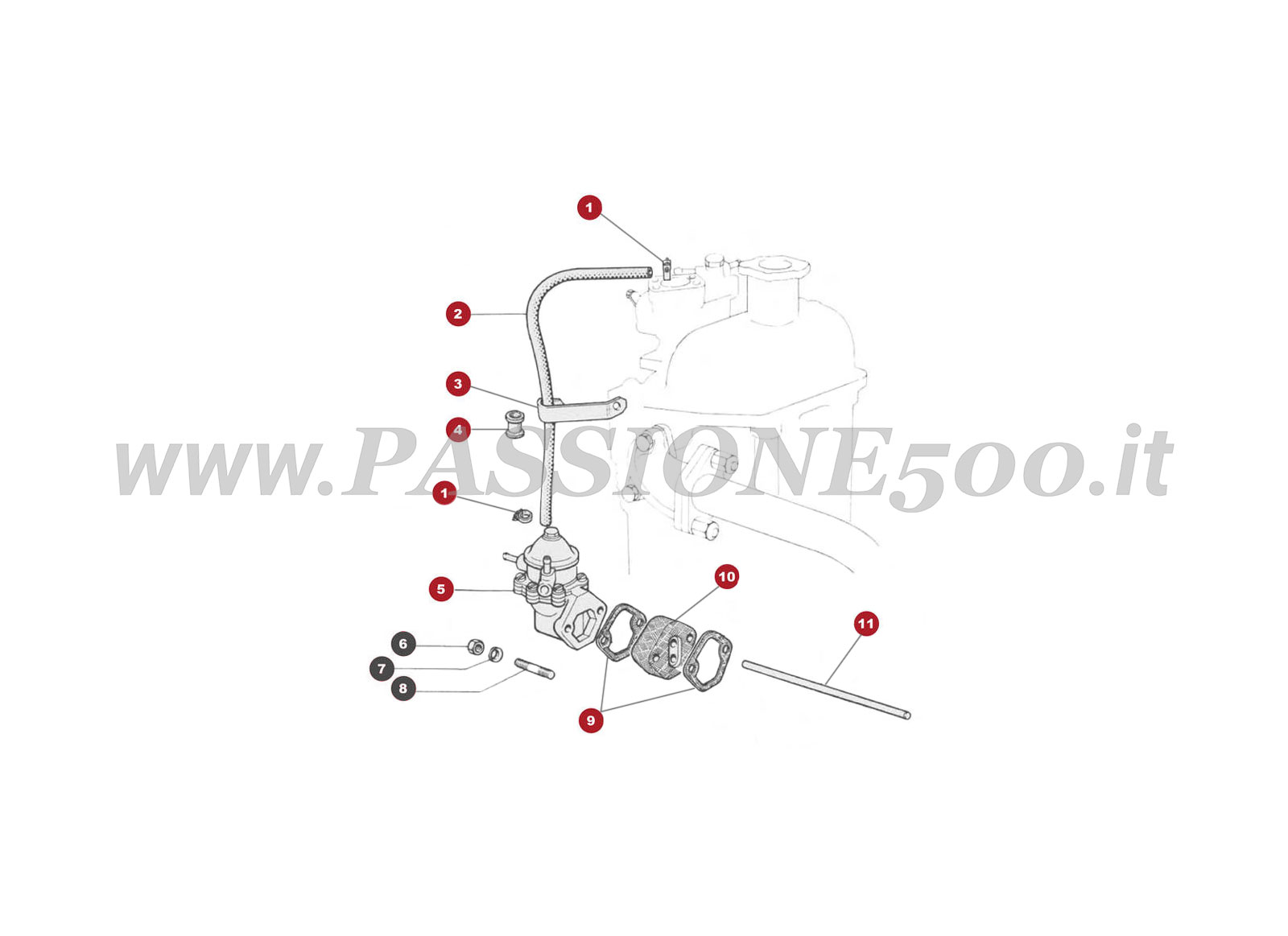

EXPLODED VIEW 8M – Fuel pump FIAT 500R

Select an exploded view number to view the product

EXPLODED VIEW 8M – Fuel pump FIAT 500R

EXPLODED VIEW 8M – Fuel pump FIAT 500R

10

Fuel Pump Spacer Fiat 500 R

10,00 €
COD: MOT97

1

Fuel Hose Fixing Clip Fiat 500

1,00 €
COD: MOT108

1

Fuel Hose Fixing Clip Fiat 500

1,00 €
COD: MOT108

2

Transparent PVC Fuel Hose / Ø ext. 9 mm. – Ø int. 5 mm. / type Cavis Fiat 500

4,00 €
COD: MOT104

Fuel Hose Covered in Cloth Braided / Ø ext. 10 mm. – Ø int. 5 mm. / Fiat 500

6,00 €
COD: MOT106

3

Fuel Hose Fixing Bracket on Cylinder Head Fiat 500

4,00 €
COD: MOT110

4

Rubber Bush for Fuel Hose Fixing Bracket on Cylinder Head Fiat 500

2,00 €
COD: MOT109

5

Fuel Pump Fiat 500 D (from engine n.° 746364) – F – L – R

35,00 €
COD: MOT90

Fuel Pump “BCD Corona” – Premium Quality – Fiat 500 D (from engine n.° 746364) – F – L – R

65,00 €
COD: MOT91

Fuel Pump – for Alternator – Fiat 500 D (from engine n.° 746364) – F – L – R

35,00 €
COD: MOT92

Fuel Pump for Alternator – “BCD Corona” Premium Quality – Fiat 500 D (from engine n.° 746364) – F – L – R

65,00 €
COD: MOT92B

6

7

8

9

Fuel Pump Gasket / 0,7 mm / Fiat 500 D (from engine n.° 332432) – F – L – R – Giardiniera (from engine n.° 105678)

2,00 €
COD: MOT100B

Fuel Pump Gasket / 0,3 mm / Fiat 500 D (from engine n.° 332432) – F – L – R – Giardiniera (from engine n.° 105678)

2,00 €
COD: MOT100D

Full Engine Gasket Set Fiat 500 R (until engine n.° 149452)

30,00 €
COD: MOT3

Full Engine Gasket Set Fiat 500 R (from engine n.° 149453)

30,00 €
COD: MOT3B

Full Engine Gasket Set – Modify 650 cc. – Fiat 500

30,00 €
COD: MOT4

11

Fuel Pump Push Rod Fiat 500 R

6,00 €
COD: MOT102
