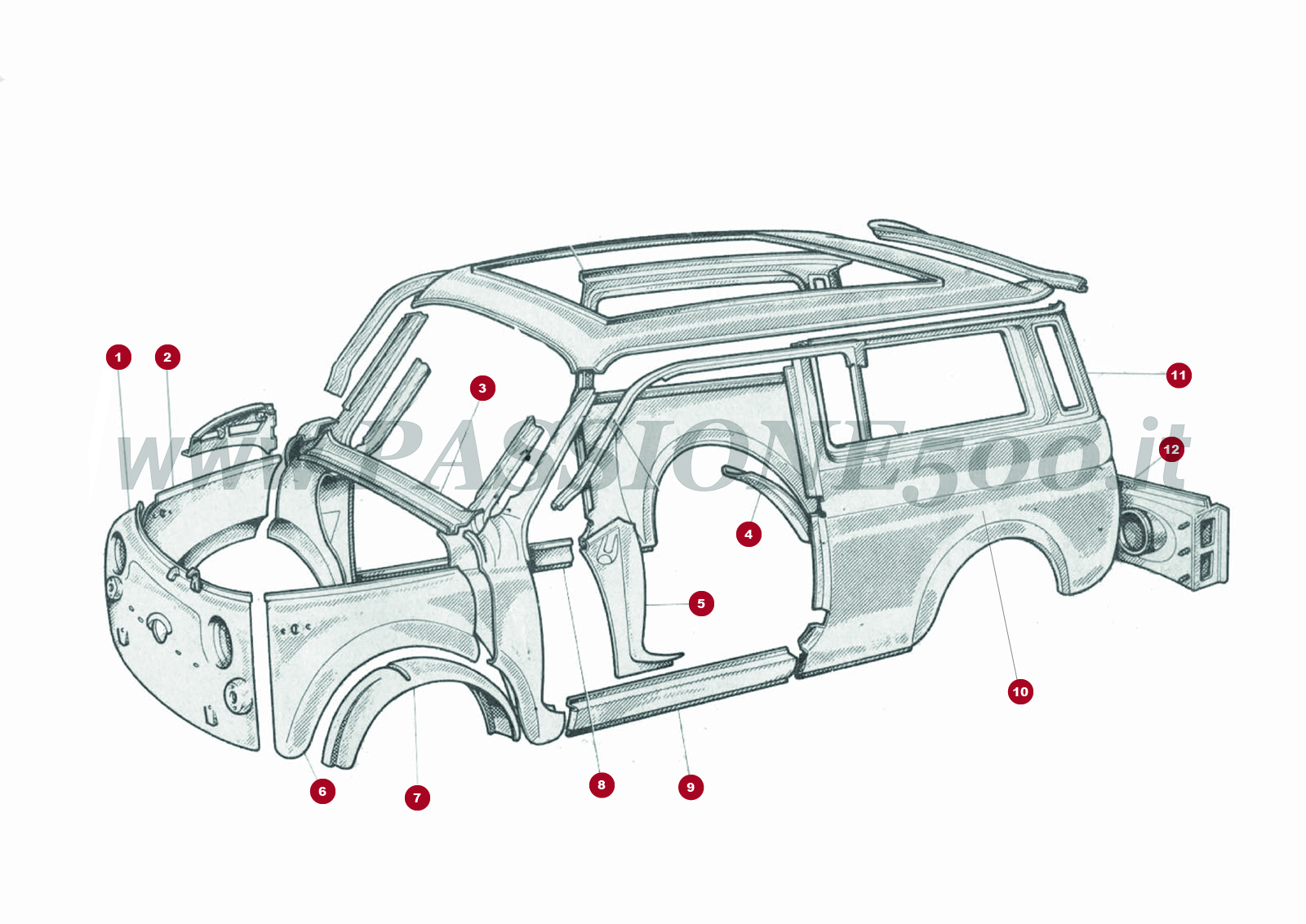

EXPLODED VIEW 5C – External body parts FIAT 500 Giardiniera Base D

Select an exploded view number to view the product

EXPLODED VIEW 5C – External body parts FIAT 500 Giardiniera Base D

1

2

4

5

6

7

8

9

10

11

12

3

EXPLODED VIEW 5C – External body parts FIAT 500 Giardiniera Base D

EXPLODED VIEW 5C – External body parts FIAT 500 Giardiniera Base D

1

Front Panel Fiat 500 D – Giardiniera base D (from n.° for spares 032381)

2

Right Front Fender Fiat and Autobianchi 500 Giardiniera

4

Left Outer Rear Arch Wheel Fiat 500

Right Outer Rear Arch Wheel Fiat 500

5

Left Internal Reinforcement between Door and Front Wing Fiat 500 N D Giardiniera

Right Internal Reinforcement between Door and Front Wing Fiat 500 N – D – Giardiniera

6

Left Front Fender Fiat and Autobianchi 500 Giardiniera

7

Left Outer Front Arch Wheel Fiat 500

Right Outer Front Arch Wheel Fiat 500

8

Right Outer Sill Panel Fiat e Autobianchi 500 Giardiniera

9

Left Outer Sill Panel Fiat e Autobianchi 500 Giardiniera

10

Left Rear Wing Fiat e Autobianchi 500 Giardiniera

Right Rear Wing Fiat e Autobianchi 500 Giardiniera

11

Left Rear Top Grille Panel Fiat and Autobianchi 500 Giardiniera

Right Rear Top Grille Panel Fiat and Autobianchi 500 Giardiniera

12

3

Lower Windscreen Scuttle Repair Panel Fiat 500
