EXPLODED VIEW 11C – Sunroof and parts FIAT 500 Autobianchi Giardiniera Base F

Select an exploded view number to view the product

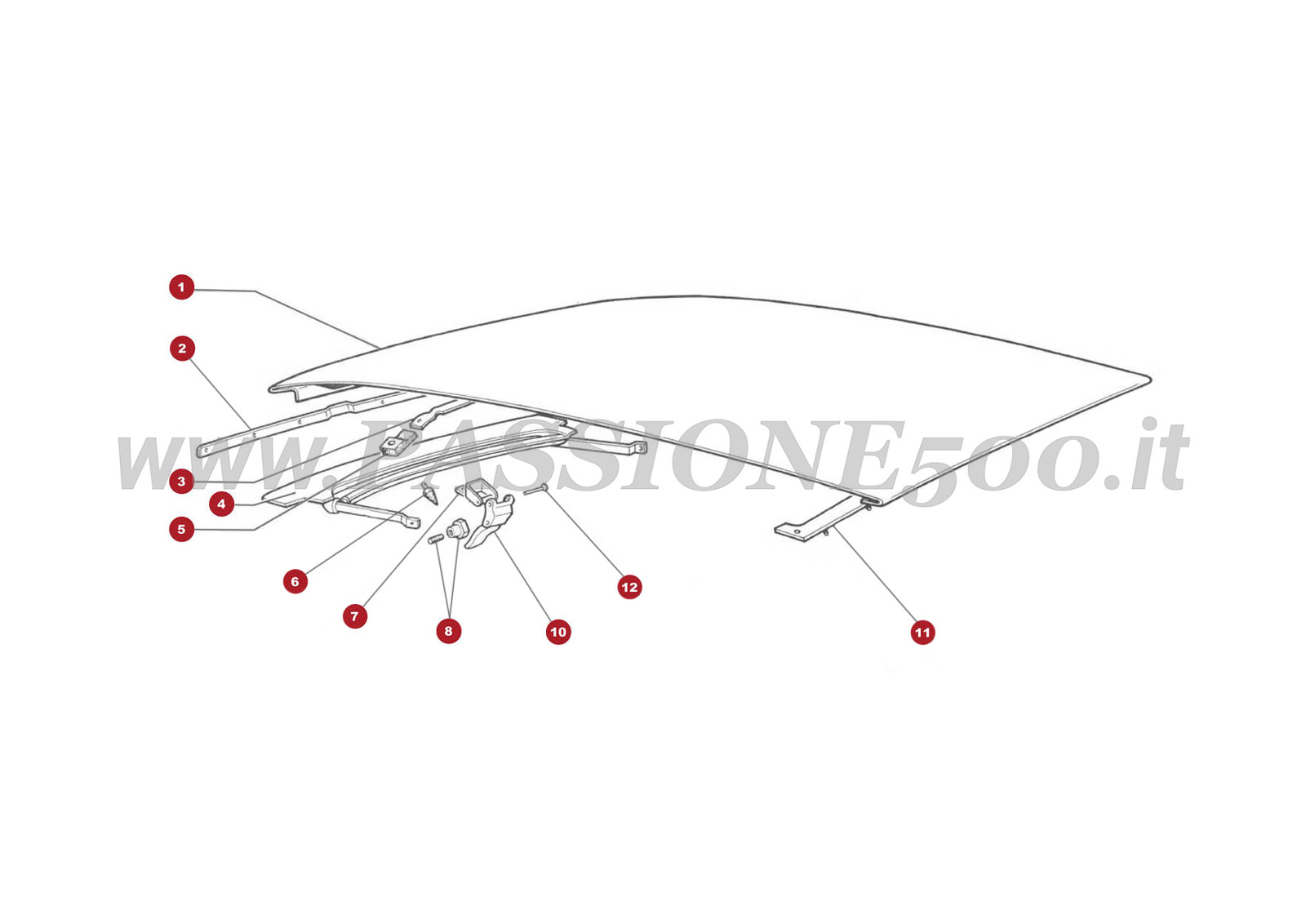

ESPLOSO 11C – Capote e particolari FIAT 500 Autobianchi Giardiniera Base F

1

2

3

4

5

6

7

8

10

11

12

EXPLODED VIEW 11C – Sunroof and parts FIAT 500 Autobianchi Giardiniera Base F

ESPLOSO 11C – Capote e particolari FIAT 500 Autobianchi Giardiniera Base F

1

Black Sunroof Cover Fiat and Autobianchi 500 Giardiniera

Black Sunroof Complete with Black Internal Frame Fiat 500 and Autobianchi 500 Giardiniera – F base

Red Sunroof Cover Fiat and Autobianchi 500 Giardiniera

Red Sunroof Complete with Internal Frame Fiat and Autobianchi 500 Giardiniera – F Base

Brown Sunroof Cover Fiat and Autobianchi 500 Giardiniera

Brown Sunroof Complete with Internal Frame Fiat and Autobianchi 500 Giardiniera – F Base

Blue Sunroof Cover Fiat and Autobianchi 500 Giardiniera

Blue Sunroof Complete with Internal Frame Fiat and Autobianchi 500 Giardiniera – F Base

Grey Sunroof Cover Fiat and Autobianchi 500 Giardiniera

Grey Sunroof Complete with Internal Frame Fiat and Autobianchi 500 Giardiniera – F Base

Ocher Sunroof Cover Fiat and Autobianchi 500 Giardiniera

Red Bordeaux Sunroof Cover Fiat and Autobianchi 500 Giardiniera

2

Black Sunroof Cover Front Fixing Strip Fiat 500 F (from May 1970) – L – R – Giardiniera base F

Fixing Kit for Front Sunroof Strip Fiat 500

3

Black Centre Sunroof Cover Bar Fiat 500 F (from May 1970) – L – R – Giardiniera

Black Rivet for Sunroof Fixing Fiat 500 F – L – R – Giardiniera base F

4

Black Internal Sunroof Frame Fiat and Autobianchi 500 Giardiniera – base F

5

Rubber Bush for Centre Sunroof Bar Fiat 500

6

Sunroof Handle Rubber Plug Fiat 500 F – L – R – Giardiniera base F

7

Sunroof Handle Bracket Fiat 500 Fiat 500 F – L – R – Giardiniera base F

8

Chrome Nut and Stud for Sunroof Frame Fixing Fiat 500

Sunroof Frame Fixing Nut Cap Fiat 500

10

Plastic Sunroof Handle Fiat 500 F – L – R – Giardiniera F base

Metal Sunroof Handle with Pin Fiat 500 F – L – R – Giardiniera base F

11

Rear Bar for Sunroof Cover Fixing with Threaded Pins Fiat and Autobianchi 500 Giardiniera

Fixing Kit for Sunroof Rear Bar Fiat 500

12

Sunroof Handle Fixing Pin Fiat 500 F – L – R – Giardiniera base F
